22mm x 15mm Pressfit Gas Reducing Coupling (Copper) - PFGRC-2215
22mm x 15mm Pressfit Gas Reducing Coupling (Copper) - PFGRC-2215
Order now to collect up to 99+ in 8 working days
Couldn't load pickup availability
Collapsible content
Product Description

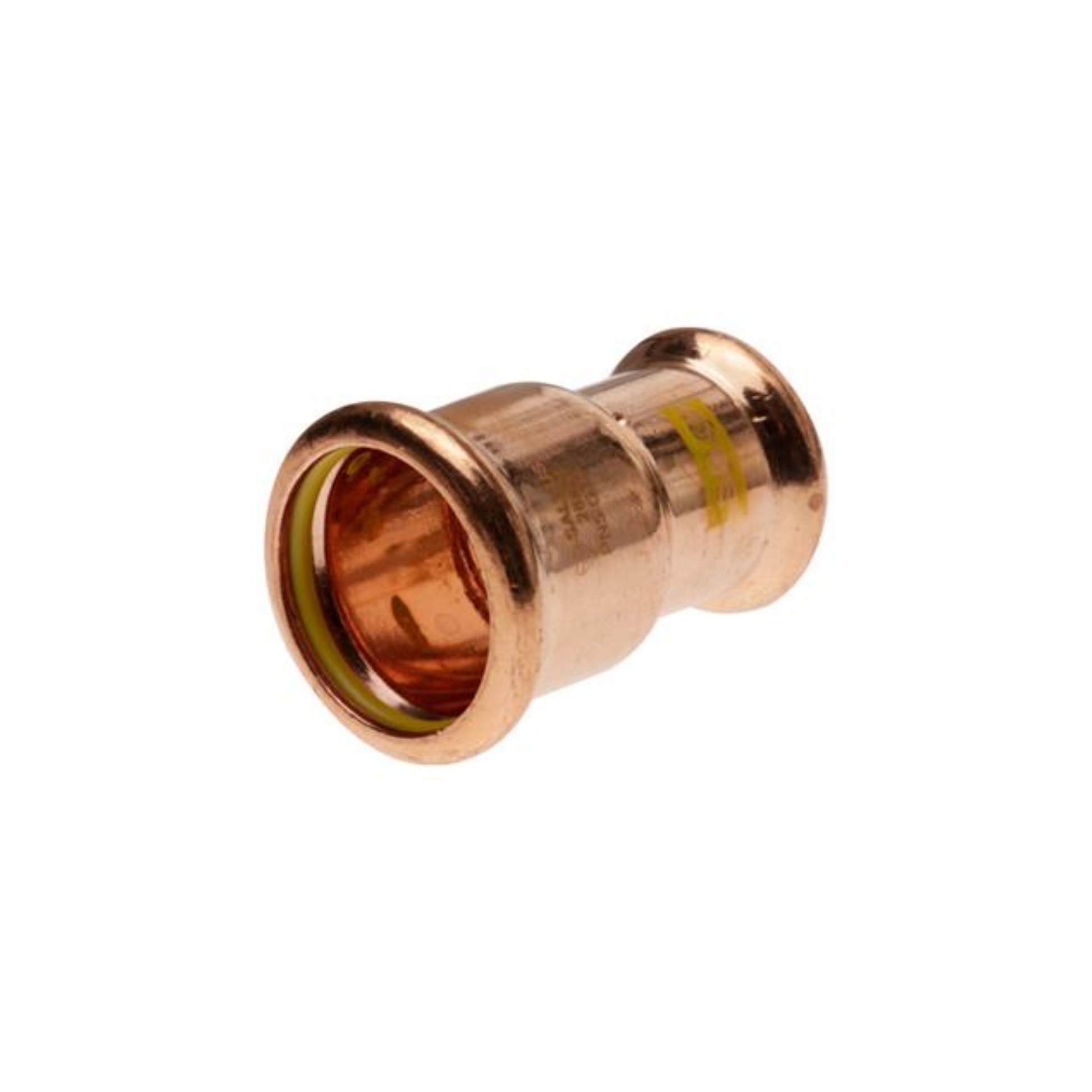

PFGRC-2215 | Pressfit Gas 22mm x 15mm Reducing Coupling (Copper)
The Press Fit Gas Fittings Reducer 22mm x 15mm is made of copper with a yellow EPDM olive. It holds BSI Kitemark KM 768668 & GVDW approvals. The operating pressure is 16 bar at -24C to +110C and it comes with a 20 year guarantee. The Navigator Press Fit Gas fittings range is suitable for use with gas systems, providing a lower installation cost, and a permanent, tamper-proof joint. This efficient and durable jointing system is a safer option than solder or compression fittings, as it does not need a flame. It is also quicker to install. Use certified copper tube to give long-lasting and leak-free joints.
- Copper with yellow EPDM sealing ring – corrosion-resistant and heat-tolerant
- Flame-free press-fit system—no soldering or open flame required
- Suitable for natural gas, LPG, and high-temperature solar thermal systems (up to 230 °C)
- BSI Kitemark KM 768668 & GVDW approved; rated up to 16 bar and –24 °C to +110 °C
Technical Specification
| diameter | 22 mm |
| length | 50 mm |
| pack size | 1 |
| range | Pressfit Gas |
| supplier part number | PFGRC-2215 |
| type | Reducing Coupling |
| color pattern | Bronze |
| material | Copper |
