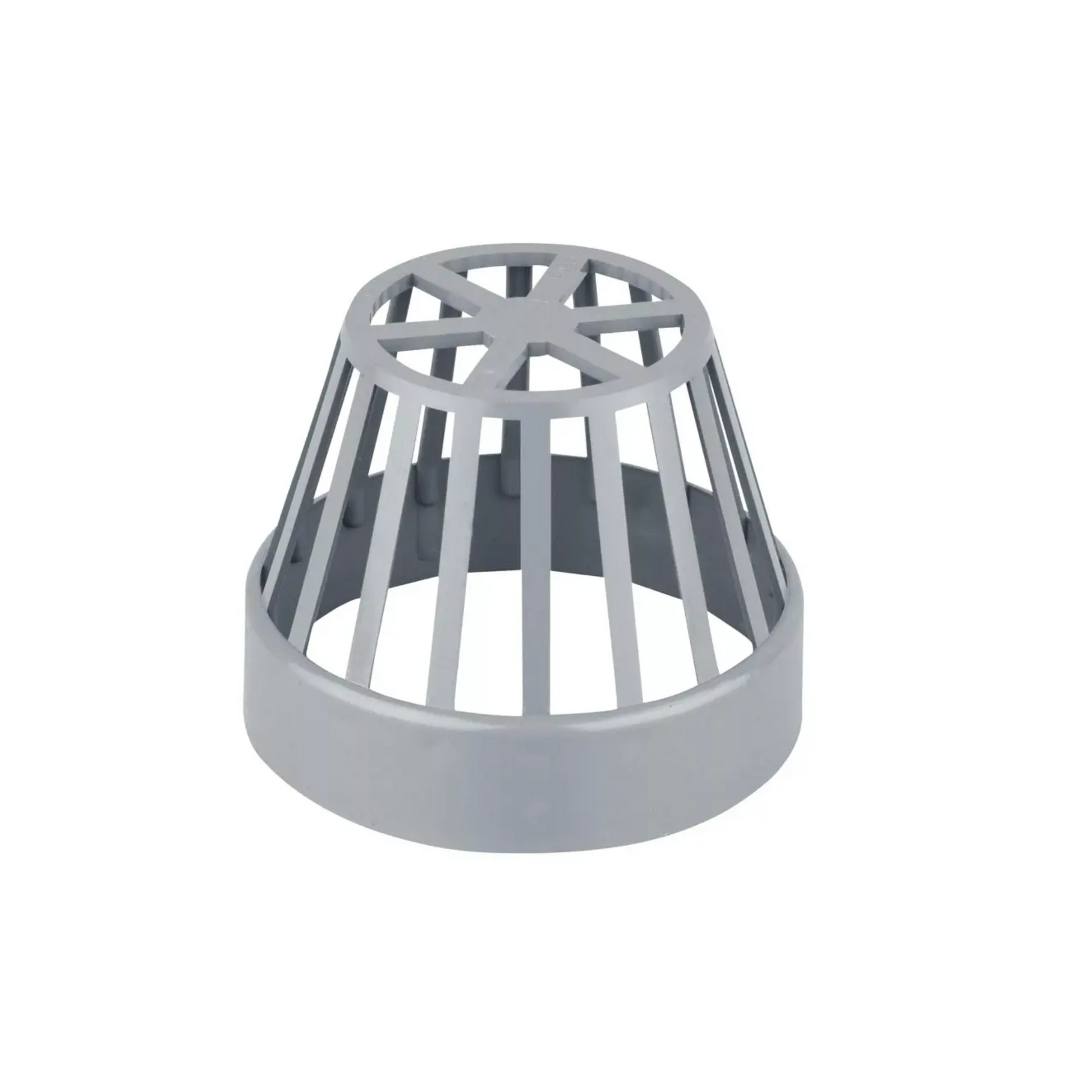

4S302G | Wavin OsmaSoil 110mm Balloon Grating (Grey)
A balloon grating fitting designed to cap off the top of a 110 mm soil or waste stack, providing aeration while preventing debris and pests entry. Suitable for both ring‑seal and solvent‑weld systems, it features captive seal technology and a keyway for correct orientation. Available in grey, white, olive, and black for color matching.
- Compliant with BS 4514 and Kitemark standards.
- Enables matching to different installation aesthetics.
- Keyway ensures correct alignment for optimal airflow.
- Captive seal ensures it remains properly in place once installed.
- Connects seamlessly with both push-fit and solvent-weld configurations.
- Allows airflow out of soil stacks while blocking debris, insects, and birds.
Technical Specification
| depth | 90 mm |
| diameter | 110 mm |
| height | 110 mm |
| pack size | 1 |
| range | OsmaSoil |
| supplier part number | 4S302G |
| type | Balloon Grating |
| width | 110 mm |
| color pattern | Grey |
| material | Polyvinyl Chloride Unplasticized (PVCu) |
