Product Description

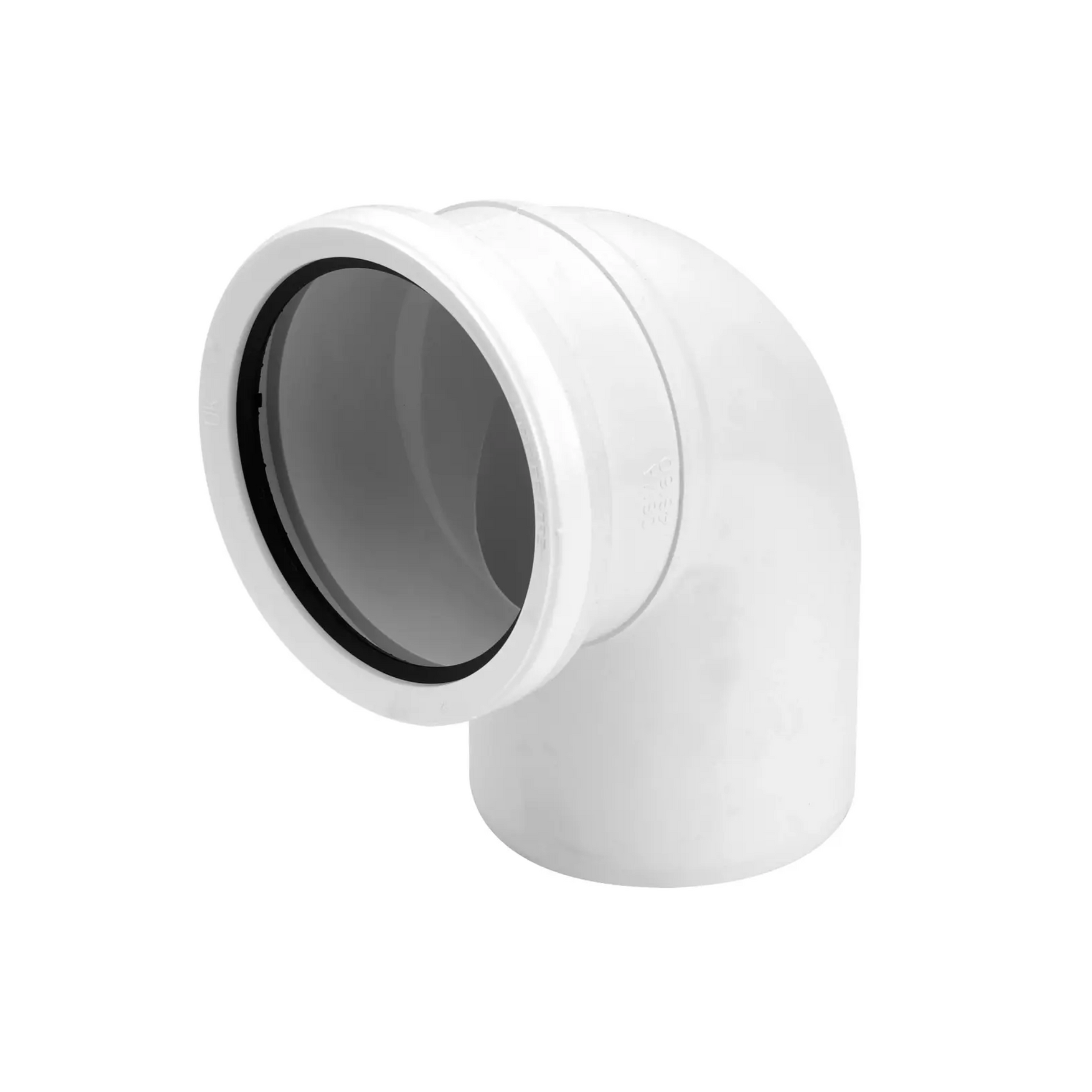

44S160W | Wavin OsmaSoil 87.5° 110mm Tight Radius Ring Seal Bend (White)

A compact, tight-radius 87.5° bend designed for 110 mm OsmaSoil soil and waste stacks. It features a push-fit ring-seal socket with a captive EPDM seal and a plain solvent-weld spigot. Fully Kitemarked to BS EN 1329‑1, this fitting provides reliable, leak-free connections and is ideal for installations with limited space.

  • Tight-radius design reduces footprint in confined spaces while maintaining flow direction.
  • Captive EPDM seal ensures leak-proof push-fit installation.
  • Dual connection types allow flexibility: push-fit one end, solvent-weld the other.
  • Certified quality with Kitemark compliance and durable PVC-U construction.

Technical Specification
height 170 mm
length 200 mm
pack size 1
range OsmaSoil
supplier part number 4S160W
type Ring Seal Bend
width 130 mm
color pattern White
material Polyvinyl Chloride Unplasticized (PVCu)
