Manthorpe GRS-FF Radiator Pipe Guide and Seal - GRS-FF
Manthorpe GRS-FF Radiator Pipe Guide and Seal - GRS-FF
SKU:
GRS-FF
Part Number: GRS-FF
Regular price
£4.11
Ex. VAT
Sale price
£4.11Ex. VAT
Regular price
80 in stock available for delivery next-day delivery from tomorrow
Delivery
Calculating delivery estimate...
Couldn't load pickup availability
Collapsible content
Product Description

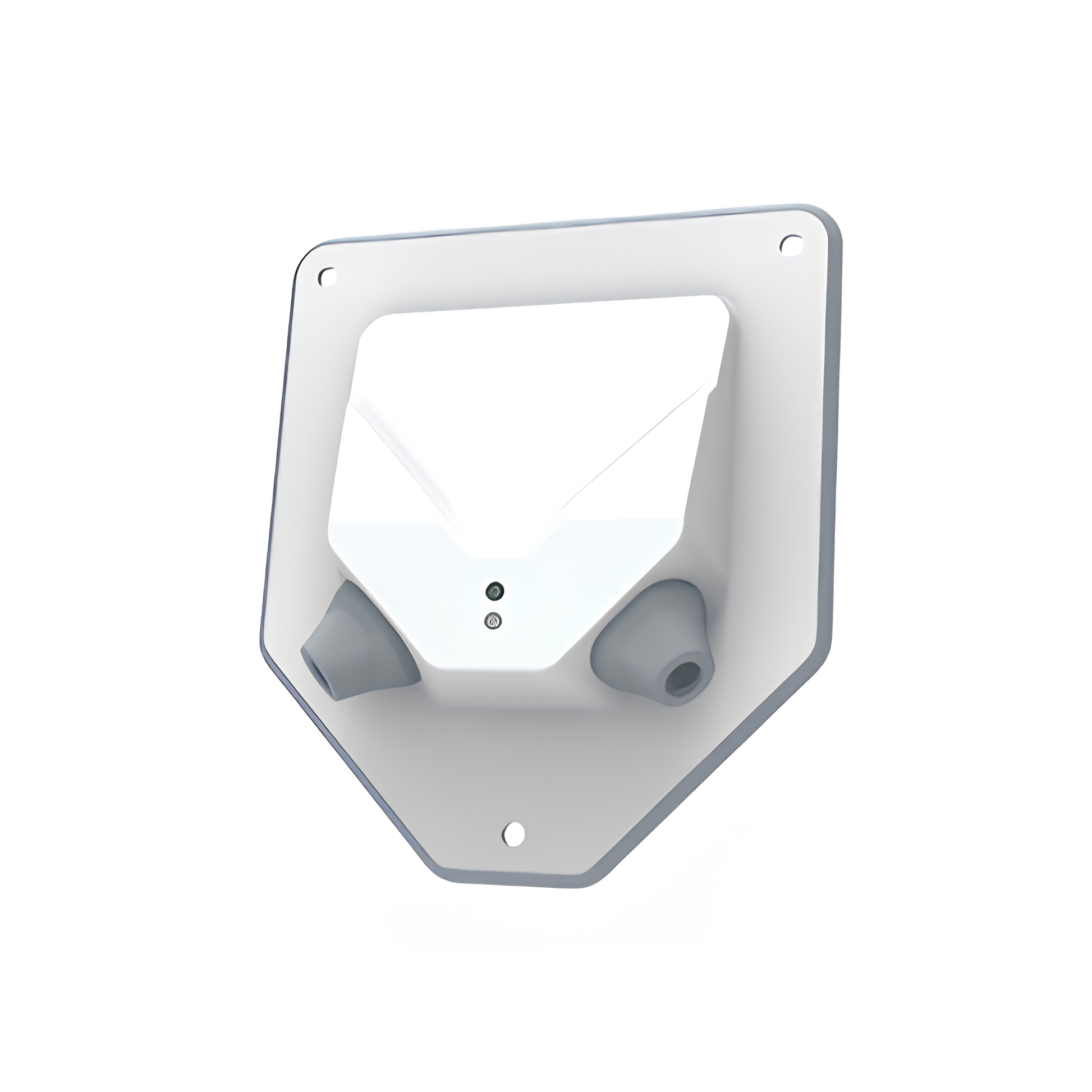

GRS-FF | Manthorpe GRS-FF Radiator Pipe Guide and Seal
-
The Manthorpe GRS-FF is designed to prevent air leakage at pipework penetrations behind a radiator that is plumbed with 10mm flexible plastic barrier pipework commonly used for central heating systems in modern buildings .Along with limiting air leakage through the penetration and producing an attractive finish, the product also acts as a guide for the pipework. It exits from behind the wall and transitions below the radiator to the valve points at the outer corners, eliminating the risk of kinks and chafing along the exposed run of pipe.
- Twin plate system to maximise the benefits for first and second fix installations
- First fix mount plate anchors the pipework at the correct point of exit from the wall
- Guide channels help to curve the pipework towards the valves to prevent kinking
- Mount plate can work with various wall constructions such as blockwork or stud walls
- Second fix cover plate attached with a single screw, no plasterboard fixings required
- Multiple pilot hole locations between the two plates allows for various installation offsets
- Flexible grommets seal around the pipework while allowing for directional adjustability
Technical Specification
| diameters | 125 mm |
| lengths | 140 mm |
| pack size | 1 |
| supplier part number | GRS-FF |
| color pattern | White |
| material | Polytyrene |
