Danfoss Hp22 22mm 2-Port Motorised Zone Valve - 087N660900

Danfoss Hp22 22mm 2-Port Motorised Zone Valve - 087N660900

SKU: 087N660900 Part Number: 087N660900
£47.00 Ex. VAT
£47.00Ex. VAT
SAVE % Sold out

In stock

Click & Collect available
Free delivery Calculating delivery estimate...
View full details

Product Description

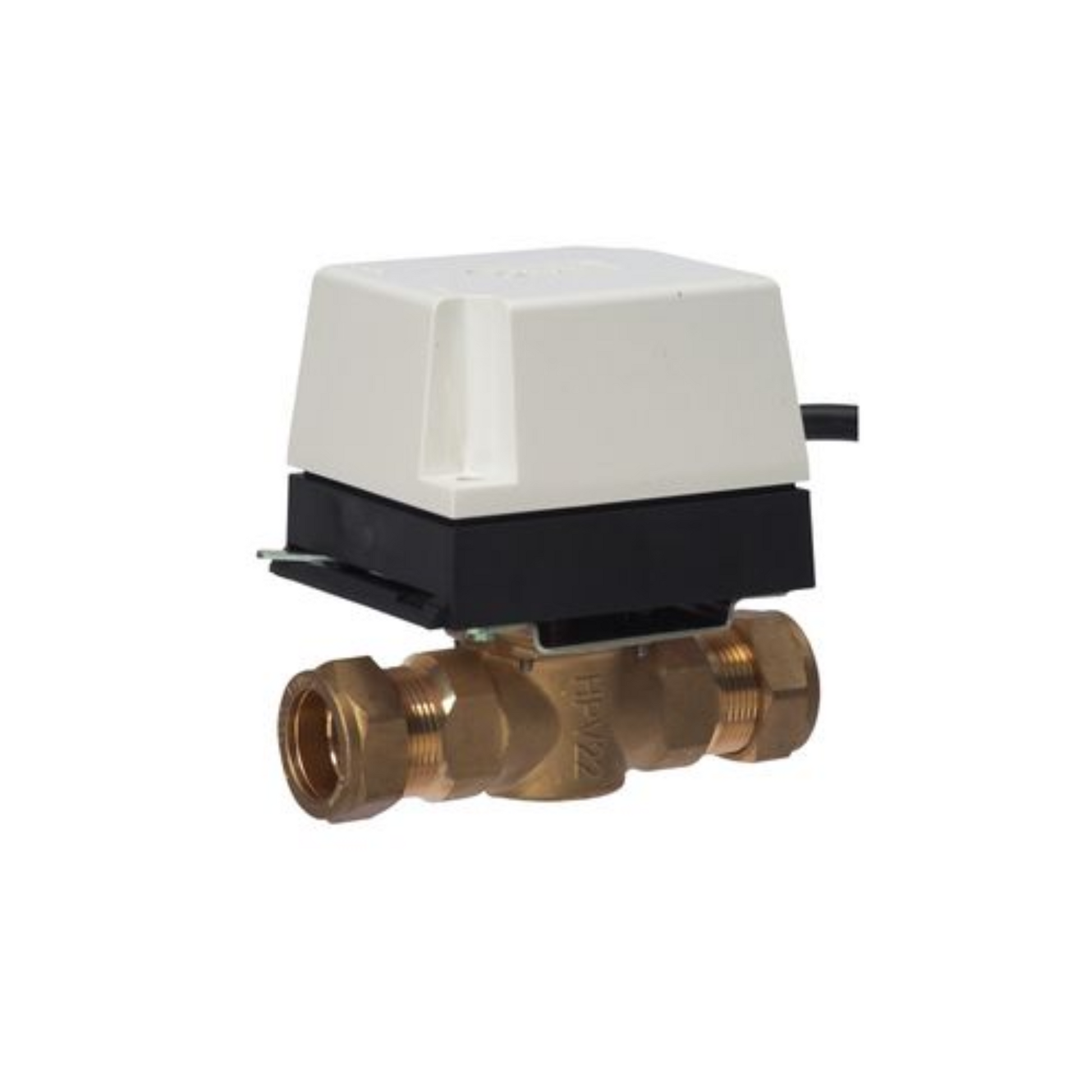

087N660900 | Danfoss Hp22 2-Port Motorised Zone Valve 22mm

Danfoss 2 port motorised valve will connect on to 22mm copper pipe. Designed for heating systems to stop and regulate water flow in residential and commercial setups. Features external compression fittings, shoe type valve, and reliable motorised operation.

  • External compression
  • Shoe type valve
  • Coefficient of flow 8.2 meter per cube per hour
  • 1.0 bar maximum differential pressure
  • 10 bar maximum working pressure
  • 95C maximum operating temperature
  • IP40 Rating

Technical Specification
depth 90 mm
handle type Manual Lever
height 115 mm
length 115 mm
model HP22 2-Port Motorised Zone Valve 22mm
range Motorised Control Valves H-Series
supplier part number 087N660900
type Zone Valve
width 80 mm
color pattern Black, White, and Gold
material Plastic and Brass
